Not exactly maintenance, more of a beautification...(powdercoating)
Welcome, Guest. Please login or register.
Did you miss your activation email?

News:

Author Topic: Not exactly maintenance, more of a beautification...(powdercoating)  (Read 37768 times)

Offline Cebby

  • Administrator
  • Sr. Member
  • Posts: 388
    • AOL Instant Messenger - Cebby66
    • View Profile
    • Email
That's right Smitherz - I'm calling you out!   ;D

I plan to do some powdercoating after seeing how great your engine looks.  I was initially inspired by Twisty and his color matched cam covers, but I like the durability of powdercoating vs auto paint

I'm going to get some finish samples from Tigerdrylac.  I want to come reasonably close to the body color on my 4Runner (dark blue).  My powdercoating will be handled by Loudin's Powder Coating

The question is, what parts make the most sense to powdercoat?  Cam covers is an easy one, but what else?  Upper intake - maybe lower too...
TOOLandFAB.com
A discussion forum dedicated to tools, fabrication & workshops

Offline Smitherz

  • Sr. Member
  • Posts: 259
    • ICQ Messenger - 39901198
    • MSN Messenger - ryan@westcoastmafia.com
    • View Profile
    • Fourwheelforum
Re: Not exactly maintenance, more of a beautification...(powdercoating)
« Reply #1 on: November 23, 2006, 12:55:22 PM »
Well lets get this show started  8) !!
What color are you going with?

I'm taking in the tubing that surround the intake manifolds next week. The local guys give me a hell of a deal since I've been supporting them for years. You can even have them do the bolts if you wanted... I just paint mine with Hammerite paint. I'll post some pics a little later on. I have some good ones.

Of course here is my thread with info on all the powdercoating I've done.
http://www.fourwheelforum.com/index.php?showtopic=59
I elected not to do my lower intake since it's not clearly visible and is very clean in the first place. I'll have pictures when I get done prepping the injectors. It's a nice contrast between the shiny lower and red upper manifold. If I did the lower red like the top it would be like putting black rims on a black car... just too much in my eyes. When you do your cam covers make sure the color goes well with the grey plastic that goes over the spark plugs wires. The red I chose goes well. People coat the plastic with special vinyl plastic cote but thats too much work I think.

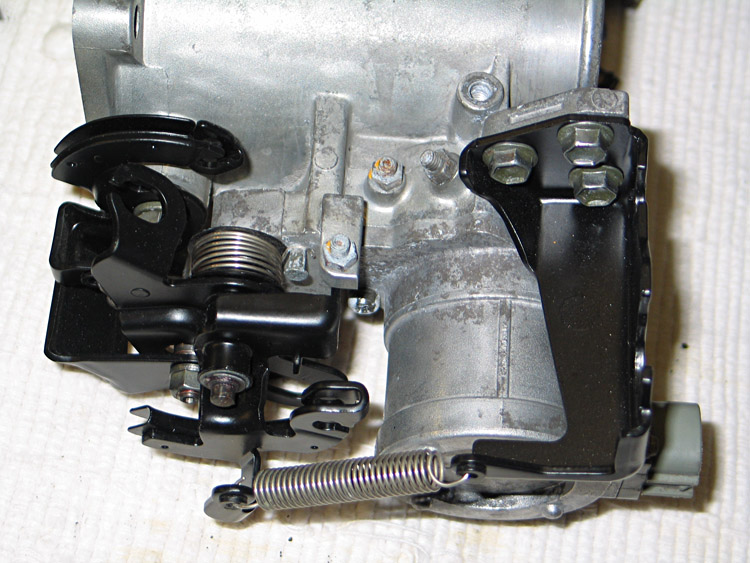

Here is a pic of my throttle linkage on the TB. Before the coating it was too horrible and corroded to look at  :-[
