Messages - bushwhacker

Pages: [1] 2 3 ... 7
1
Turn on your speakers... ;D

2
..........and another, this one is #6.  ;D




I'll post a sound bite soon.

 The best (budget) exhaust diameter/configuration/muffler combo I've found to work best regarding sound, throttle reponse and power delivery from a stock 1UZ engine (1990 - 1995) is:

2.5" downpipes from the stock LS400 manifold flanges.

Two seperate 2" dia pipes the whole length of the vehicle. (with 'H' pipe mid-way.)

No CATs.

Flowtech Raptor muffler at the end of each pipe with 3" tailpipes exiting the rear.

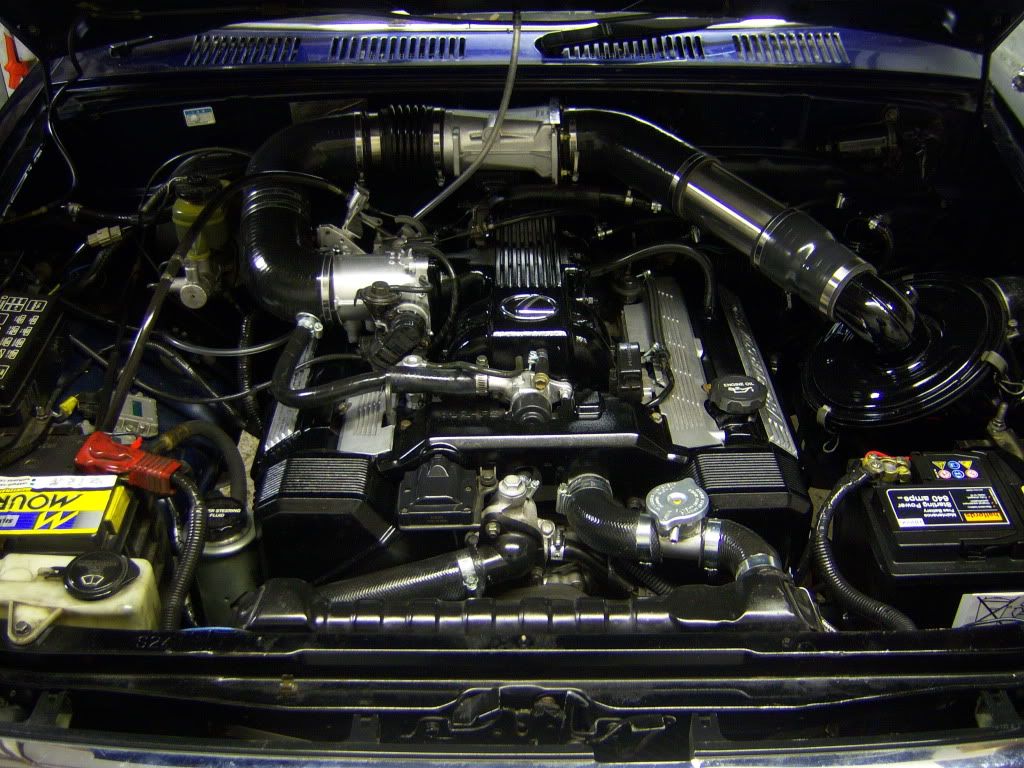

Oh, and the longer you can make the inlet tract, as in the photo, the more torque the engine seems to make.

3
Two more..........


Short audio clip, my two year old had just gone to bed so just one rev. ;D (Click on photo to play video)


Number four, not quite finished yet......


I fitted the hood rams/struts from the LS400 to this one......(Click on photo to play video)

4
Hi Bushwacker,
Just a query re the oil filter relocation. Did you use a sandwich type adapter ( round one) at the original oil filter location or an adapter right in at the block (that's an out of square shape)?
Thanks
Tom

Hi Tom, this is the kit I used.....
http://www.summitracing.com/parts/TRD-1113?autofilter=1&part=TRD%2D1113&N=700+4294907647+115&autoview=sku

The round adapter screws directly to the block using the threaded nipple supplied. The V8 is from a Celsior and didn't have the oil cooler behind the oil filter.

Hope that helps.
Vince.

5
'95.5-'04 Tacomas/'96-'02 4Runners (3rd Gen) / Re: 1UZ-FE for my Taco
« on: February 21, 2010, 03:03:14 PM »
Here it is boys. She runs fine.  ;)

http://www.youtube.com/watch?v=-8grTIRTG3w


Dude, thats badass!!

Congratulations, I bet your face is aching due to the non stop grinning. ;D



6
This time it's for a paying customer.
This truck (1992 2.4 liter turbo diesel Surf. (4Runner) has a snorkel fitted.
The heavy duty red cables behind the fuse box are for  a winch.



Some photos showing how I utilised the stock Surf (4Runner) transfercase mount, may help somebody.



Oil filter relocation kit with stock LS400 filter...I welded a short piece of flat steel to the front chassis crossmember to hold the filter head.




another photo just to show that the stock LS400 fuel pump does not fit into the diesel Surf's tank opening...

7
'95.5-'04 Tacomas/'96-'02 4Runners (3rd Gen) / Re: 1UZ-FE for my Taco
« on: December 14, 2009, 10:56:09 AM »
Looks great Smitherz. You're going to paint the surround black right?

Oh by the way,  beat ya! ;D

http://s8.photobucket.com/albums/a41/toyosurfer/?action=view&current=engineswap001-5.flv

8
'95.5-'04 Tacomas/'96-'02 4Runners (3rd Gen) / Re: 1UZ-FE for my Taco
« on: November 09, 2009, 06:37:04 PM »
Mine's going to get cut now since I don't have the height in my garage now.  Where's the best spot to cut that puppy?

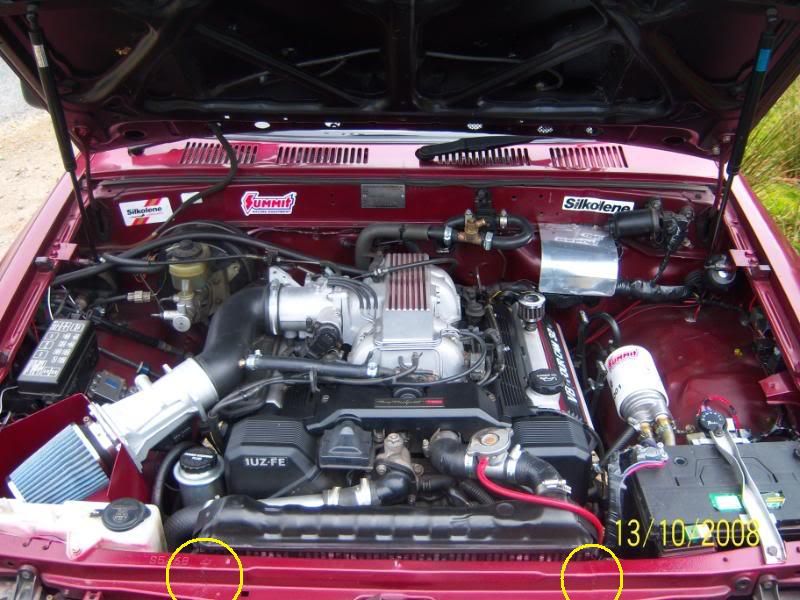

Hi Cebby, I cut mine in the areas indicated by the yellow circles.....




Hope that helps. :)

9
'95.5-'04 Tacomas/'96-'02 4Runners (3rd Gen) / Re: 1UZ-FE for my Taco
« on: November 08, 2009, 10:39:51 AM »
Looking good there Smitherz.

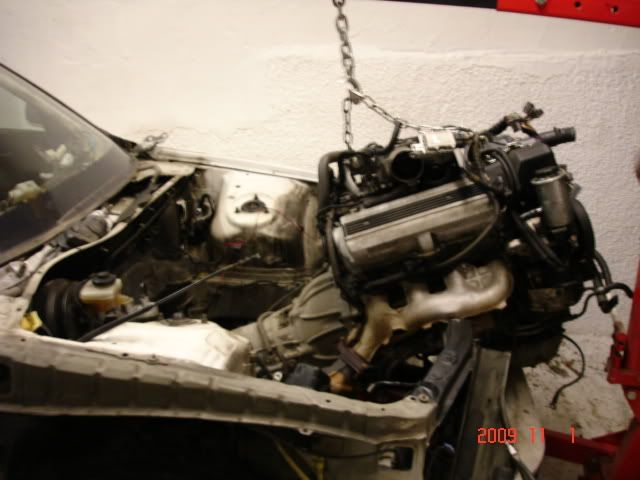

When are you gonna fire up that motor??? I've just started my second 1UZ swap into another Surf (4Runner)
The race is on!! ;D


10
Wiring and Electronics / Re: 1UZ fires then stops, wont start
« on: August 18, 2009, 05:27:23 PM »
Are the igniters earthed (grounded) properly? i.e. are they touching bare metal and not just scratched paint?

11
Wiring and Electronics / Re: 1UZ fires then stops, wont start
« on: August 11, 2009, 04:42:35 PM »
Are the coil wires plugged in securely?

12
thought that was the case for a manual :(  one other thing i forgot... is a body lift neccesary for a 2wd conversion?

No, because the front diff is  not required  and the engine can be mounted lower.

Vince, from sunny south Wales too! ;D

13
'95.5-'04 Tacomas/'96-'02 4Runners (3rd Gen) / Re: 98 4Runner
« on: May 07, 2009, 02:36:51 PM »
Power steering pump leaking??
Some people have had the pumps leak fluid and it drips directly in/onto the alternator.

I've made and fitted a small deflector under mine out of thin aluminum sheet.

14
'95.5-'04 Tacomas/'96-'02 4Runners (3rd Gen) / Re: 1UZ-FE for my Taco
« on: April 21, 2009, 12:51:53 PM »
Dude, hurry up, I need to know what it sounds like with those sexy headers! ;D

15
'95.5-'04 Tacomas/'96-'02 4Runners (3rd Gen) / Re: 98 4Runner
« on: March 24, 2009, 04:47:10 AM »
Hey Chewy, congratulations on getting your truck running, sounding and looking fantastic!
Regarding your cooling problems, it's probably to do with your hood scoop. The faster you go, the less efficient the radiator becomes as the scoop is creating back pressure against the airflow coming through  the radiator.


Just a thought. :)
